Magnetic resin shielded power inductor

SMD Shielded power chip inductor

Wire wound SMD Power Inductors-HNR252012S Series

Operating Temperature range:-25℃ to +120℃(Including self-heating)

HNR252012S Series

FEATURES

1.Magnetic-resin shieded construction reduces buzz noise to ultra-low levels

2.Metallization on Ferrite Core results in excellent shock resistance and damage-free durability

3.Closed magnetic circuit design reduces leakage flux and Electro Magnetic Interference(EMI)

4.30% higher current rating than conventional inductors of equal size

5. Takes up less PCB real estate and save more power

APPLICATIONS

1.LED lighting

2. Next-gerneration mobile devices with multifunction such as adding color TV and digital movie cameras

3. Flat-screen TVs, blue-ray disc recorders ,set top box

4.Notebooks, desktop computer,servers,graphic cards

5.Portable gaming devices,personal navigation systems, persona multimedia devices

6.Automotive systems

7.Telecomm base stations

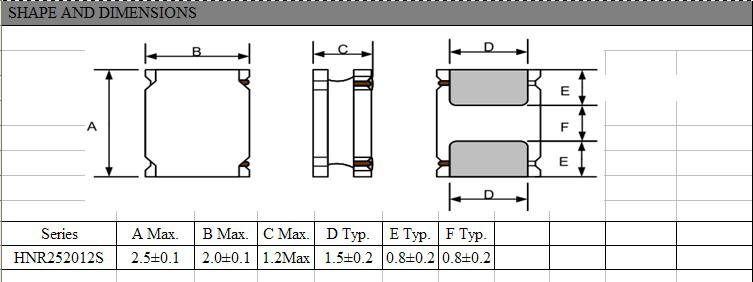

SHAPE AND DIMENSION

PACKING QUANTITY

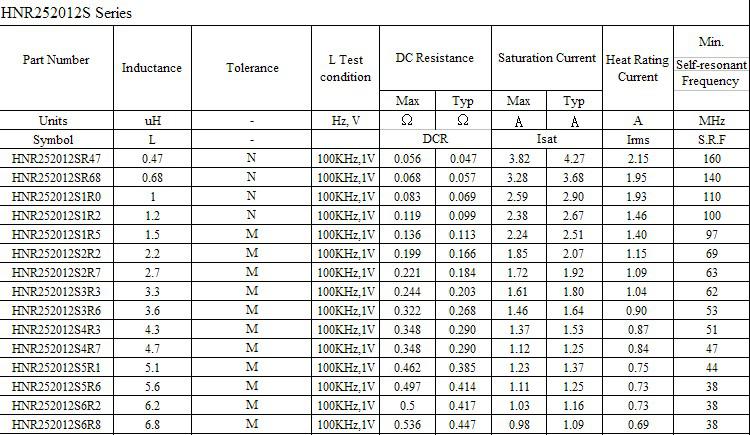

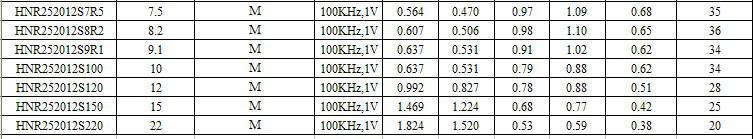

 SPECIFICATION
