wire wound chip inductor
> 1.High rate current, high Q value
2.Good resistance to heat and humidity
3.High density mounting > 1.Small chip suitable for mounting
2. High Q value and high self-resontant frequency with ceramic material
3.Tight inductance tolerance and stable inductance at high frequency
> (1) Video cameras.
(2) Portable VCRs.
(3) Audio equipments.
(4) TV tunners.
...
【 Send a message 】
|
Product Details：
ceramic inductor/ murata inductor/ wire wound chip inductor
inductor price/ smd inductor coil/ common mode inductor
Chip Inductor(Chip Coil) Power Inductor (Wire Wound Type for Choke)
HSHW1608C Series (1608 Size) HSHW Series----wire
FEATURES
1.Small chip suitable for mounting
2. High Q value and high self-resontant frequency with ceramic material
3.Tight inductance tolerance and stable inductance at high frequency
APPLICATIONS
1.High frequency circuit in telecommunication and other equipments
2.Mobile phones such as GSM,CDMA,PDC,etc
3.Bluetooth,W-LAN

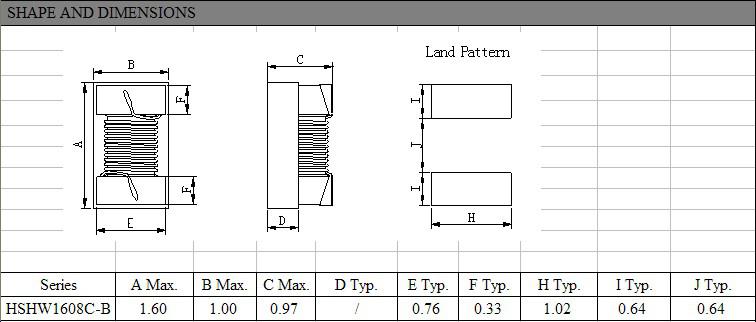

SHAPE AND DIMENSIONS
PACKING QUANTITY

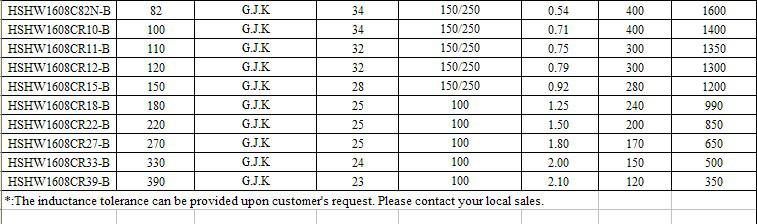

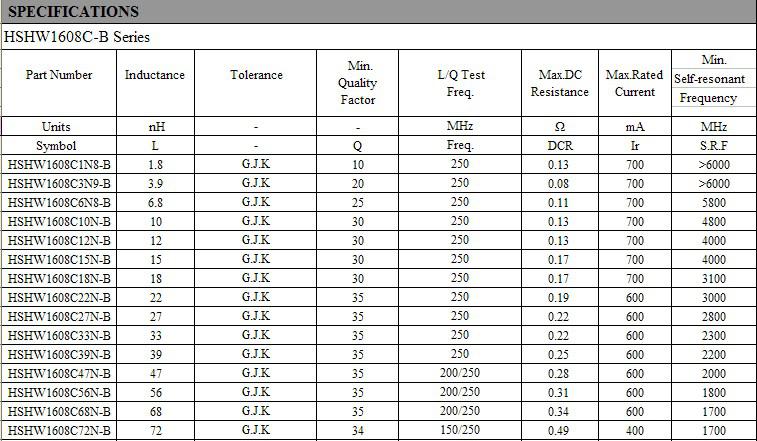

SPECIFICATIONS
