Choke inductor/ smt inductor/ inductor core

PFC inductor/ air coil inductor/ inductors smd

Wire wound SMD Power Inductors-HNR3015S Series

Operating Temperature range:-25℃ to +120℃(Including self-heating)

HNR3015S Series

FEATURES

1.Magnetic-resin shieded construction reduces buzz noise to ultra-low levels

2.Metallization on Ferrite Core results in excellent shock resistance and damage-free durability

3.Closed magnetic circuit design reduces leakage flux and Electro Magnetic Interference(EMI)

4.30% higher current rating than conventional inductors of equal size

5. Takes up less PCB real estate and save more power

APPLICATIONS

1.LED lighting

2.Next-gerneration mobile devices with multifunction such as adding color TV and digital movie cameras

3.Flat-screen TVs, blue-ray disc recorders ,set top box

4.Notebooks, desktop computer,servers,graphic cards

5.Portable gaming devices,personal navigation systems, persona multimedia devices

6.Automotive systems 7.Telecomm base stations

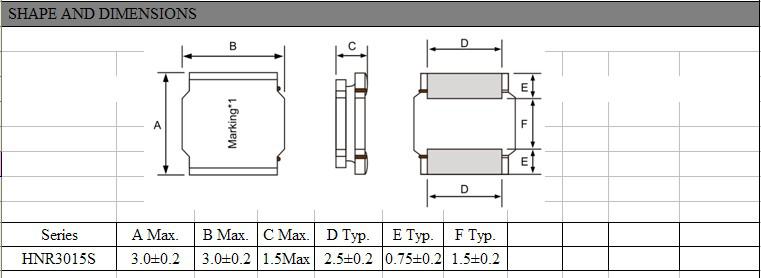

SHAPE AND DIMENSIONS

PACKING QTY

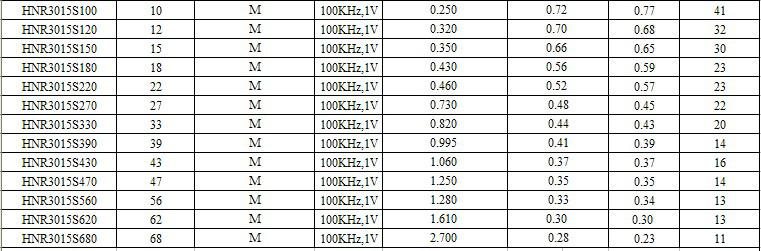

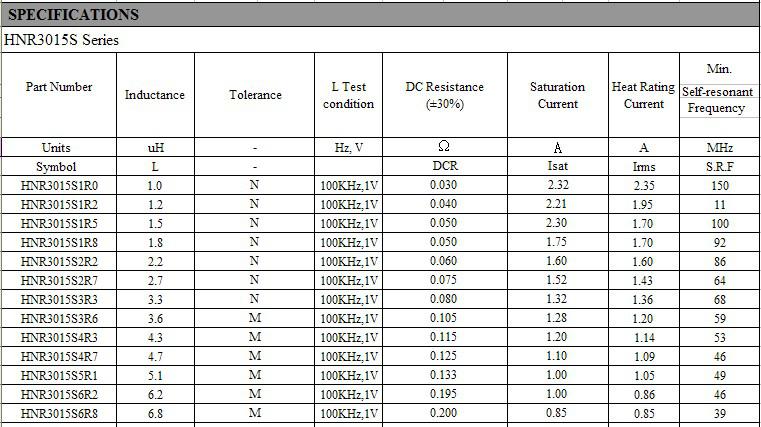

SPECIFICATIONS
