wire wound chip ceramic inductor
> Small chip suitable for mounting > Wire Wound Chip Ceramic Inductor
> High frequency circuit in telecommunication and other equipments
【 Send a message 】
|
Product Details：
Wire Wound Chip Ceramic Inductor
inductor transformers
Inductor applications
Chip Coil Inductor
Power Inductor (Wire Wound Type for Choke)
HSWH2012C Series (2012 Size)
HSHW Series----wire
FEATURES
1.Small chip suitable for mounting
2.High Q value and high self-resontant frequency with ceramic material
3.Tight inductance tolerance and stable inductance at high frequency
APPLICATIONS
1.High frequency circuit in telecommunication and other equipments
2.Mobile phones such as GSM,CDMA,PDC,etc
3.Bluetooth,W-LAN

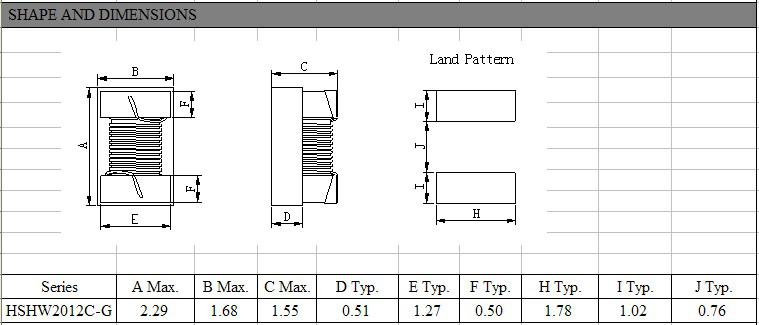

SHAPE AND DIMENSION
PACKING QTY
| Code | Packaging | Minimum Quantity |
| L | 180mm Embossed Tape | 800 |

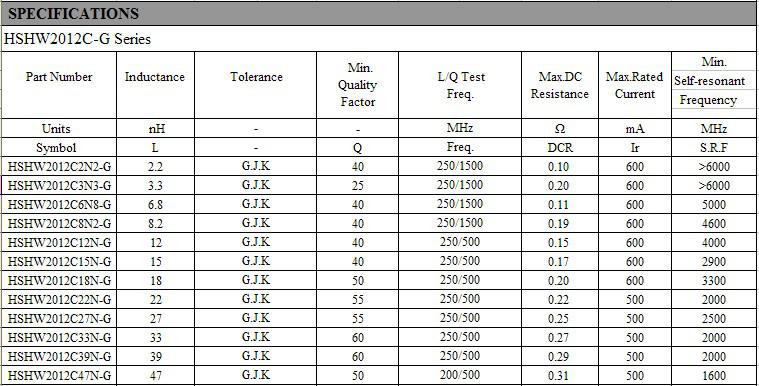

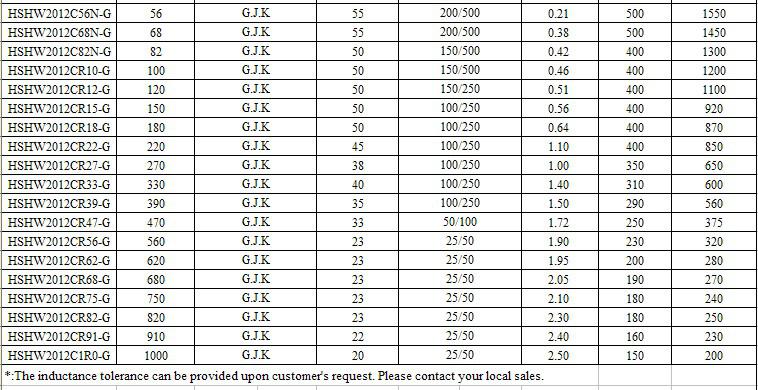

SPECIFICATIONS
